Sunroof Handling
Sunroof Handling Made Easier
Sunroof handling needs care, balance and accuracy. The sunroof is large, delicate and surface-sensitive. It must be lifted, moved, oriented and inserted without glass damage, seal disturbance or alignment error. Fine Handling provides custom handling systems and automated solutions to support safe lifting, controlled placement and accurate fitment of sunroofs on car, MUV and SUV assembly lines.
Built for Vehicle Assembly Lines
Designed Around Sunroof Insertion Challenges
Lift. Align. Place.
Safe lifting
Controlled placement
Better alignment
Reduced damage

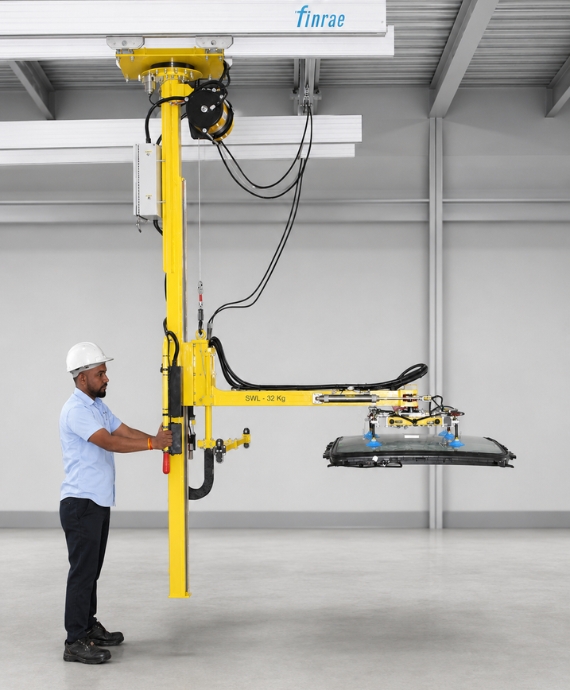

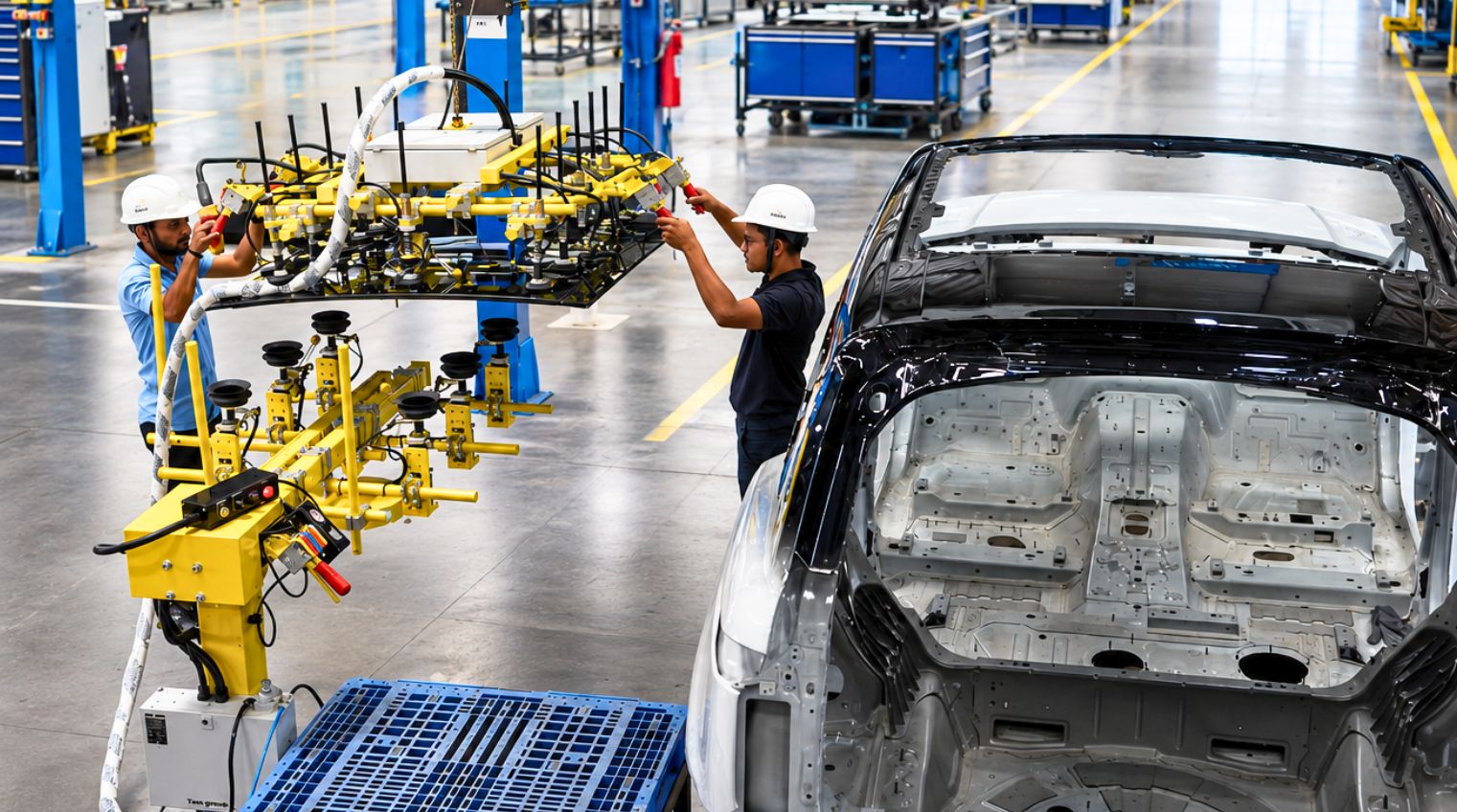

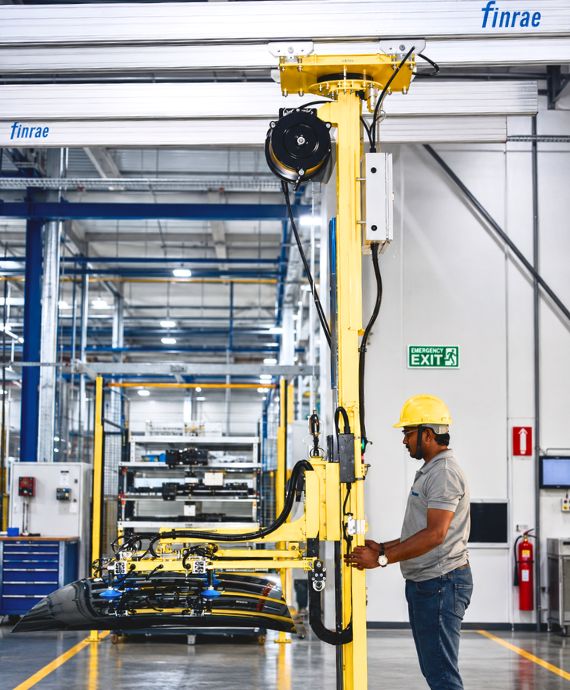

Sunroof is presented horizontally. Rail mounted manipulator and customised gripper are used for seamless insertion and installation on the car body.
Sunroof Placement With Better Control
Sunroof fitment is a sensitive operation in car, MUV and SUV assembly. The component is large and delicate. It includes glass, frame, seal, motor and sliding mechanism. During handling, even a small scratch, impact or wrong angle can lead to rejection, rework or leakage issues later.
The challenge is not only lifting the sunroof. It must be presented at the right height and angle. It must clear the body opening. It must be inserted smoothly. It must sit correctly on the mounting points without disturbing the seal or damaging the surrounding painted area.
Fine Handling designs sunroof handling solutions around the actual assembly process. The system can support lifting, transfer, orienting, alignment and placing the sunroof on the vehicle.
Fine has also developed automated solutions using cobots for lifting and placement of sunroofs on cars. The cobot assists the operator by taking care of controlled lifting and positioning. The final placement can still be manually assisted where operator judgement is required.
This combination of automation and manual assistance helps maintain safety, control and flexibility. Fine’s sunroof handling solutions help reduce operator strain, protect the component, improve placement accuracy and support smoother fitment on car, MUV and SUV assembly lines.
