CNG Tank Handling
CNG Tank Handling Made Safer
CNG tanks are cylindrical, heavy and safety-critical components. During fitment, they must be lifted, supported and positioned without impact, rolling, surface damage or stress on mounting brackets. Fine Handling designs CNG tank handling systems that help operators move and place tanks with better stability, control and safety during vehicle assembly.
Fine’s solution supports secure handling of cylindrical tanks from pick-up to final mounting position.
Effortless Handling of CNG tanks for Quick Fitment
Engineered for Roll Control and Mounting Accuracy
Stable handling for safe placement
Roll Control
Secure Grip
Mount Accuracy
Safer Fitment

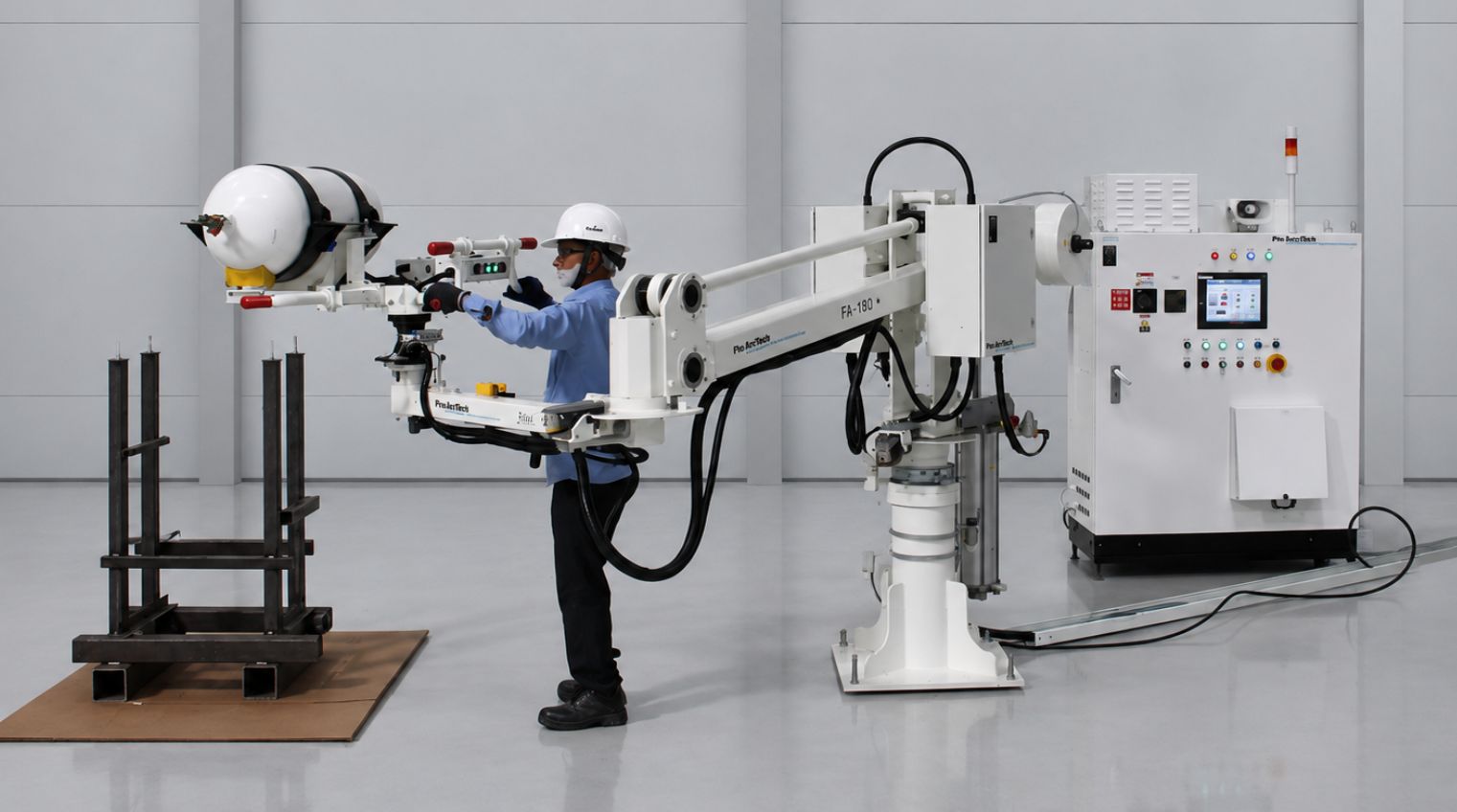

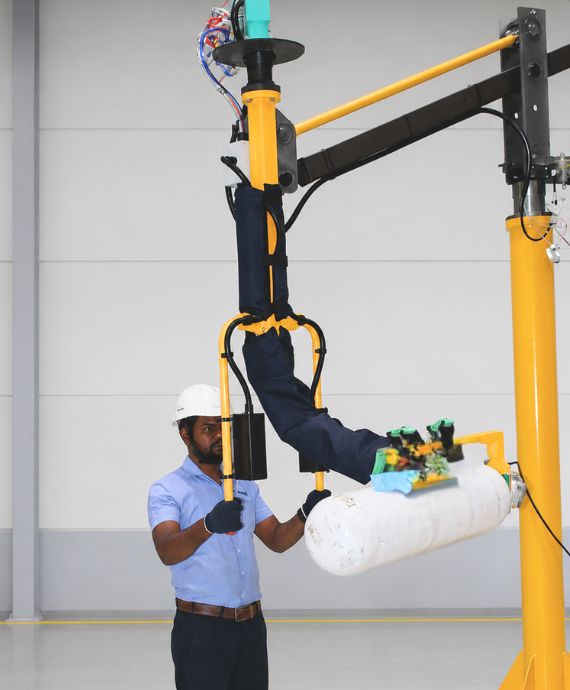

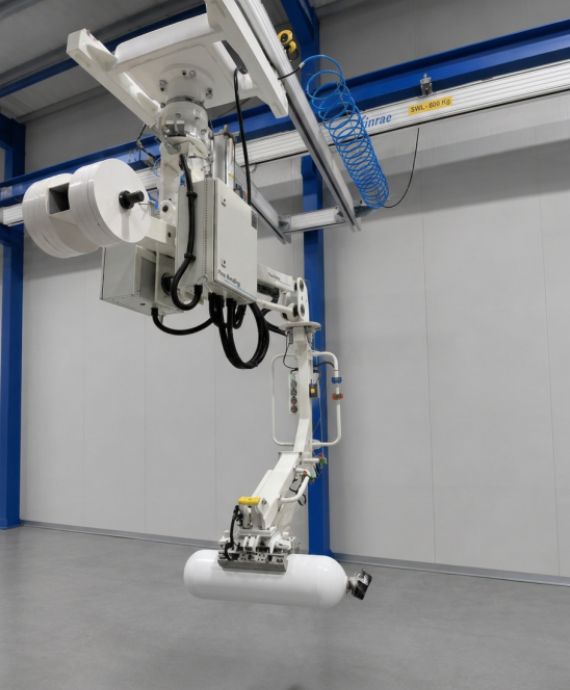

CNG Tank Placement With Controlled Movement
Technical Solution Capabilities
- Controlled lifting of cylindrical CNG tanks
- Secure cradle or clamp-based holding
- Anti-roll support during movement
- Smooth transfer from trolley, fixture or staging area
- Orientation support for valve and bracket alignment
- Accurate placement on mounting saddles or frame supports
- Stable holding during fastening
- Protection from dents, scratches and coating damage
- Operator-friendly movement of heavy tanks
- Suitable for buses, trucks and CNG commercial vehicles
CNG tank handling is different from flat or box-type component handling. The tank is cylindrical, heavy and can roll if not supported properly. It also has valve locations, mounting interfaces and surface coatings that must be protected during movement.
In commercial vehicles and buses, CNG tanks may be fitted on the chassis, roof structure, underbody area or dedicated tank mounting frame. Each location changes the handling challenge. The tank may need to be lifted higher, guided into a narrow space or aligned carefully with saddles and clamps.
Fine Handling designs the manipulator and gripper around the tank diameter, length, weight, valve position, fitment height and mounting method. Cradle support, curved contact pads, side clamping or multi-point holding can be used depending on the application.
The system helps prevent rolling, sudden shifting and unsafe manual lifting. It gives the operator controlled movement while placing the tank accurately on the mounting structure.
Fine’s CNG tank handling solutions improve safety, reduce fatigue, protect the tank surface and support repeatable fitment across commercial vehicle and CNG vehicle assembly lines.
