Windshield Handling
Windshield Handling Made Easier

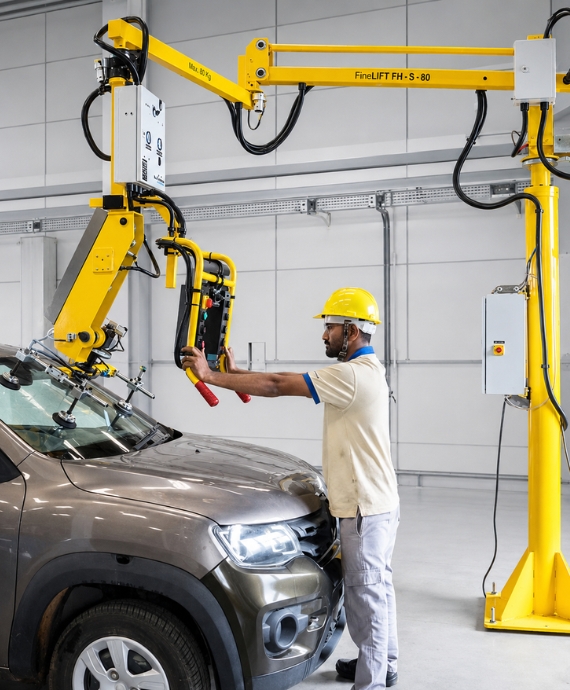

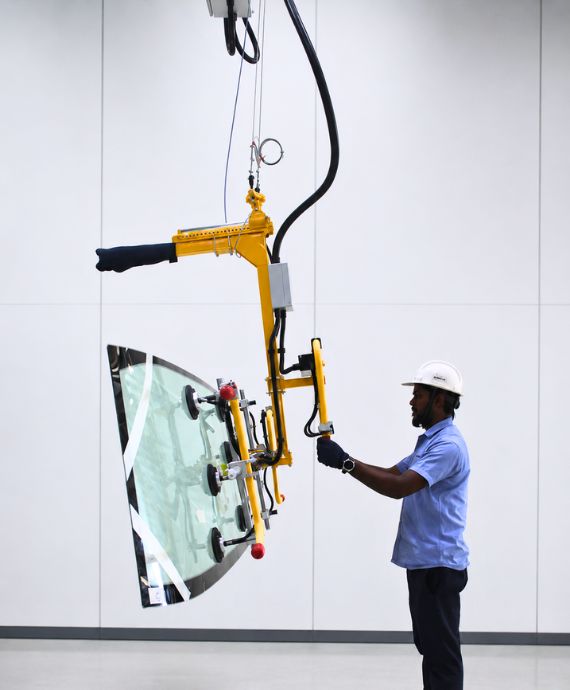

Windshield fitment is a highly precise operation that requires positioning precision and alignment accuracy. The windshield must be placed in a restricted space on frame, ensuring a flawless fit with no gaps, distortions, or stress on the glass. Fine Handling designs manipulators specifically to handle and position windshields with the utmost precision, ensuring the glass is seated perfectly and aligned with the vehicle frame during assembly.
Fine’s windshield handling systems are engineered to lift, move, orient, and place the windshield accurately, minimizing the risk of misalignment or damage during the fitment process.
Handling for Precise Windshield Fitment
Focused on Alignment and Seamless Insertion
Lift. align. Precise and gap-free fitment.
Alignment precision
Perfect fitment
Risk-free Handling
Higher accuracy

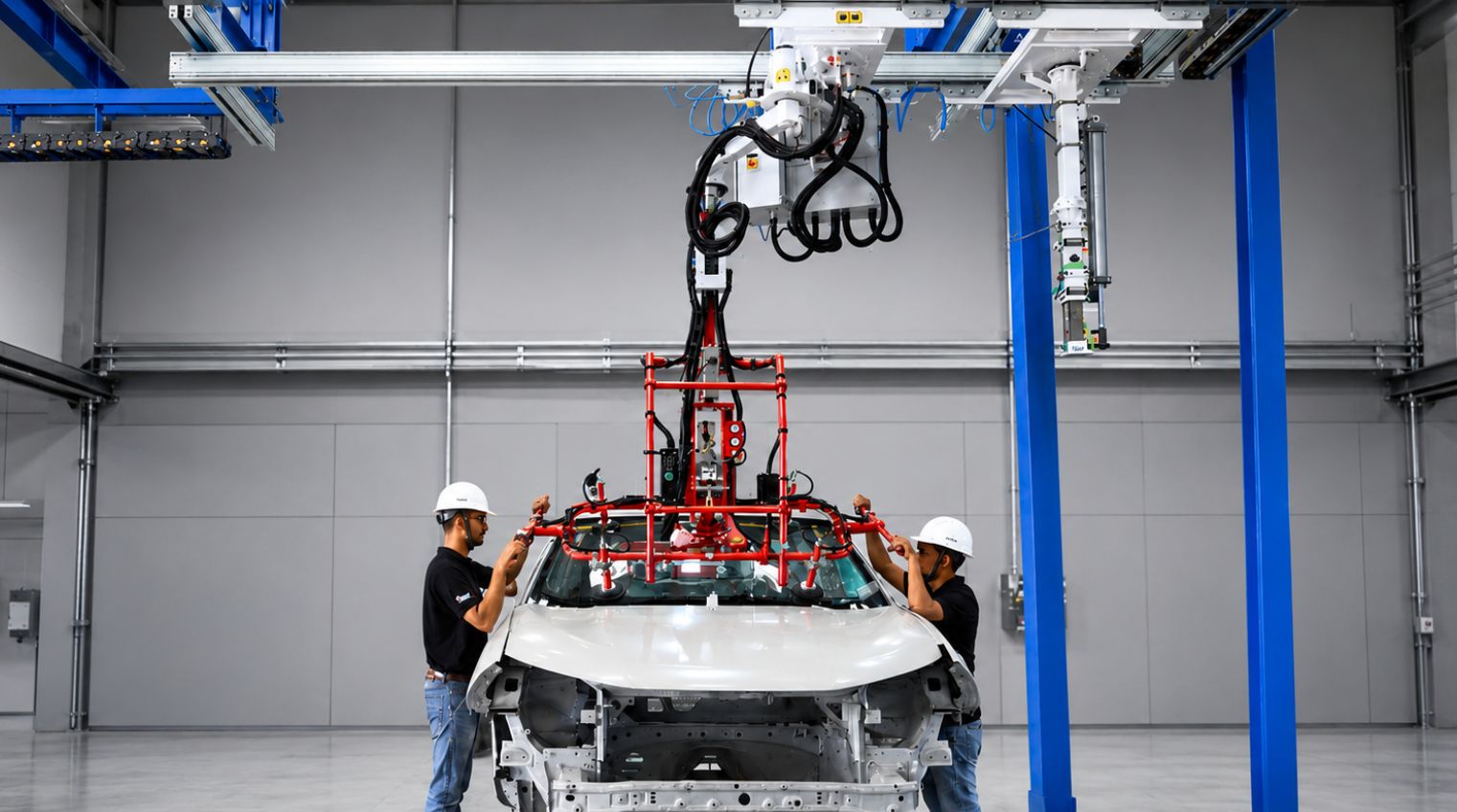

Windshield Placement with Accuracy and Control on a moving line
Technical Solution Capabilities
- Precise lifting for controlled positioning
- Smooth transfer and alignment with mounting points
- Accurate insertion on windshield frame
- Secure and stable handling to prevent shifting
- Controlled support during sealing and fastening
- Safe handling for sensitive glass surfaces
- Seamless integration into the vehicle assembly line
Windshield fitment in car assembly is a delicate process, requiring both precise positioning and alignment to ensure the glass fits perfectly without gaps or pressure points. The windshield must be placed with high accuracy to avoid future rattling, NVH issues, or windshield misalignment.
Fine Handling’s manipulators are specifically designed to address these challenges. The system ensures that the windshield is lifted and positioned with great care, allowing the operator to insert it into the frame with flawless alignment. The manipulator supports the windshield throughout the installation process, reducing the risk of damaging the glass or surrounding frame.
By focusing on precision and alignment accuracy, Fine’s windshield handling solutions minimize manual effort and ensure that the windshield is placed securely, helping to maintain the vehicle’s structural integrity and overall quality.
Fine’s systems improve fitment speed while ensuring the highest quality standards in windshield assembly, providing smooth and precise handling from the moment the windshield is lifted until it is securely fastened in place.
