Sheet Metal Handling
Sheet Metal Handling Made Controlled
Sheet metal parts are wide, sharp and some times easily deformable. During handling, they can bend, scratch or lose alignment if not supported correctly. Fine Handling designs sheet metal handling systems that help operators lift, transfer, orient and place panels safely without damaging the surface, edges or geometry of the component while eliminatng the risks of injuries.

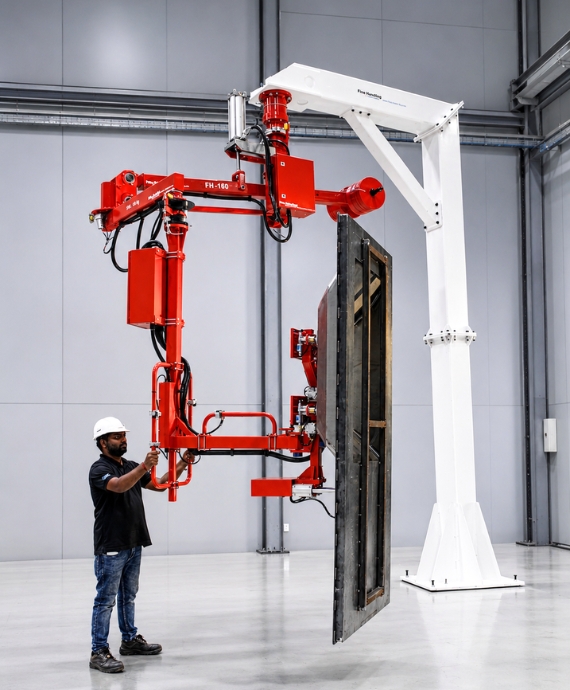

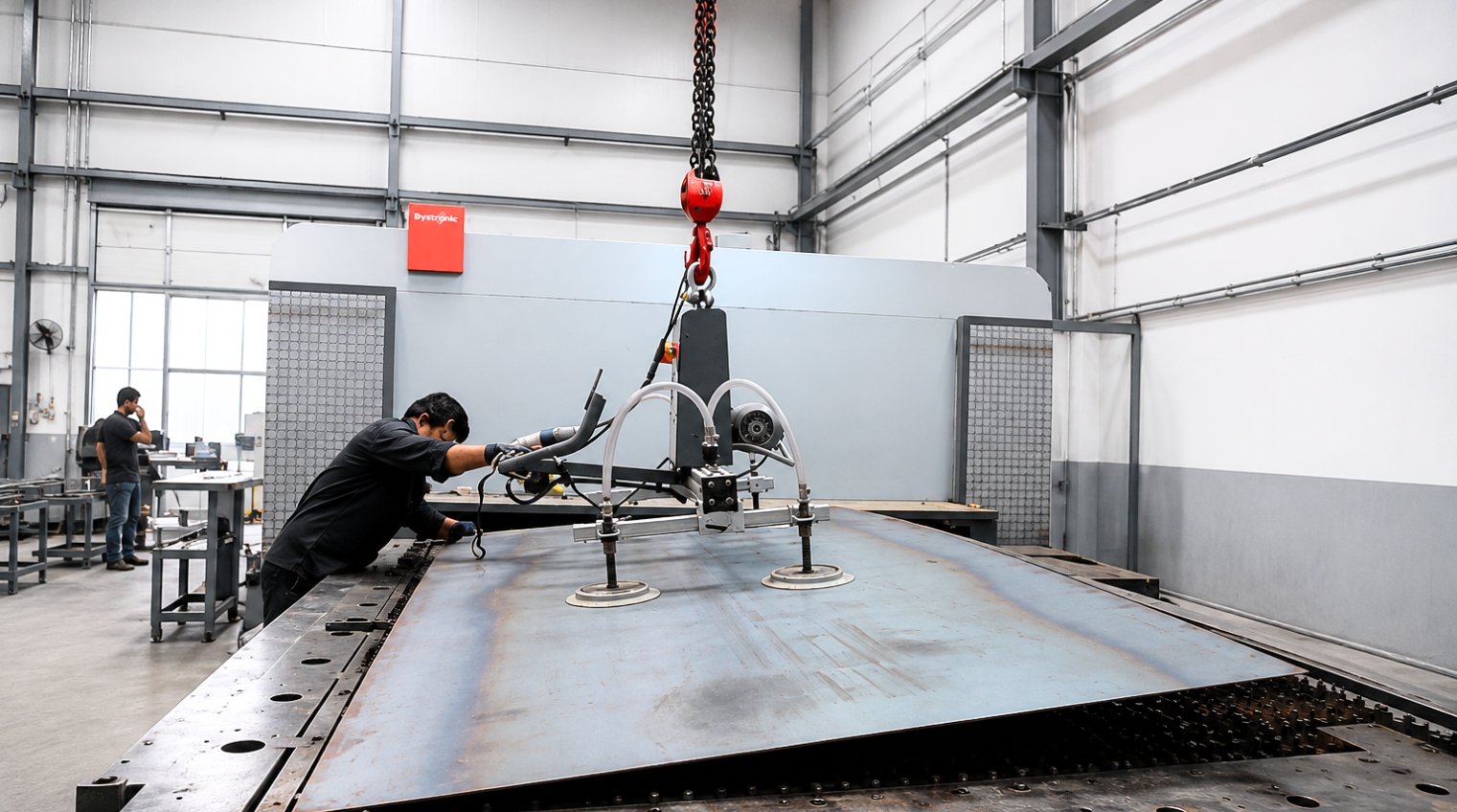

Fine Handling with its vacuum lifting devices supports stable handling of large sheet metal parts with better control and less operator effort.
Handling for Thin Panel Movement
Built for Surface Protection and Flex Control
Protecting panels during every transfer
Flex Control
Surface Safety
Edge Protection
Easy Movement
Sheet Metal Transfer With Better Stability
Technical Solution Capabilities
- Handling of flat, formed and curved sheet metal parts

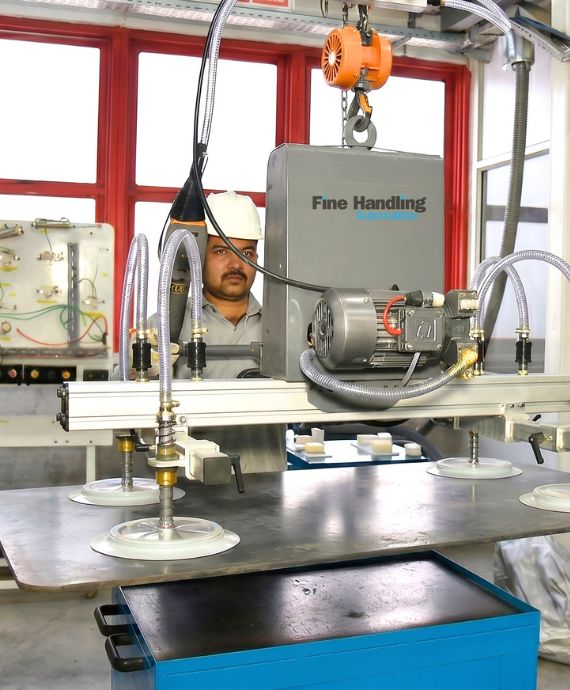

- Vacuum gripping for smooth sheet surfaces
- Multi-point support to reduce panel bending
- Edge-safe gripping for sensitive components
- Controlled lifting from stack, trolley or fixture
- Rotation and orientation support where required
- Scratch-free movement between stations
- Accurate placement on fixture, conveyor or assembly point
- Operator-friendly handling for large panels
- Suitable for automotive, fabrication and equipment manufacturing
Sheet metal handling needs care because the part may be large but not always rigid. A sheet metal panel can flex during lifting. A formed panel can lose shape if the support points are wrong. Painted, coated or finished sheets can also get scratched during movement.
Fine Handling designs the gripper and manipulator based on the sheet size, thickness, weight, surface condition, edge sensitivity and required transfer path. Vacuum cups, distributed support frames, mechanical edge grips or custom contact pads can be used depending on the application.
The system helps lift and move the sheet without sudden bending, dragging or manual strain. It also helps operators place the panel accurately on fixtures, conveyors, forming stations, welding stations or assembly areas.
Fine’s sheet metal handling solutions reduce damage, improve ergonomics and support smoother movement of panels across production and assembly lines.
