BIW Component Handling
Bulky, Off-Centre & Fixture-Critical Handling
BIW components are large, flexible, and often off-centre, making them difficult to grip and risky to handle manually. In BIW and welding lines, the challenge isn’t just lifting; it’s holding the part stable, orienting it correctly, and placing it accurately on fixtures without edge damage, misalignment, or unsafe operator postures. Repeatability matters because fixture alignment and panel location directly influence dimensional accuracy and downstream weld quality.
Industrial Manipulators for BIW Components
Fine Handling engineers industrial manipulators with customised grippers to enable controlled lift, stable orientation, and repeatable placement of BIW parts. The system is designed around part geometry, centre-of-gravity behaviour, reach, and docking logic, so operators guide the movement while the system controls stability. This reduces fatigue-driven variability and supports consistent cycle time across shifts - key expectations for Plant Heads running high-frequency lines.
Safer lifts. Precise orientation. Repeatable placement on fast-moving lines.
Clamped Handling, Base Supported Handling, Vacuum-based Lifting, Frame Grip Handling
Ergonomics Safety Efficiency Seamless
Every BIW shopfloor handles components differently
BIW lines
Welding lines
Assembly lines
Mixed-model production
Tight layouts / brownfield stations
One Manipulator. Thousands of repetitive lifts. Zero handling variability.
A Fine manipulator can run for years of repetitive handling across machining and assembly—delivering consistent orientation, stable grip, and reduced operator fatigue shift after shift.
Explore our
other Similar
Solutions
Tractor Hoods
Tyres
Chassis
Bonnet
Seats
Success Story
How Fine handling delivered a customised manipulator + gripper system to improve BIW component handling by reducing operator strain, protecting critical edges/surfaces, and improving placement repeatability on shopfloor lines, supporting safer operation and steadier throughput.

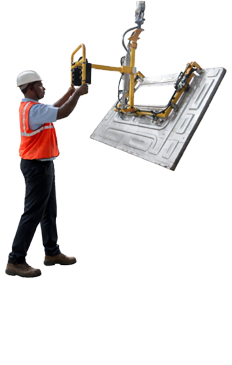

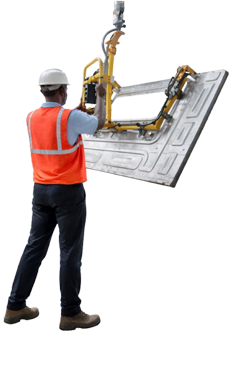

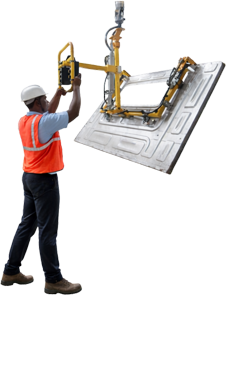

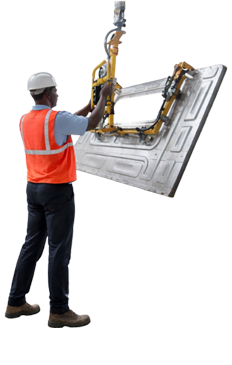

Industrial Manipulator for BIW Component Handling
Stable grip + controlled tilt/rotation for fixture-accurate placement
